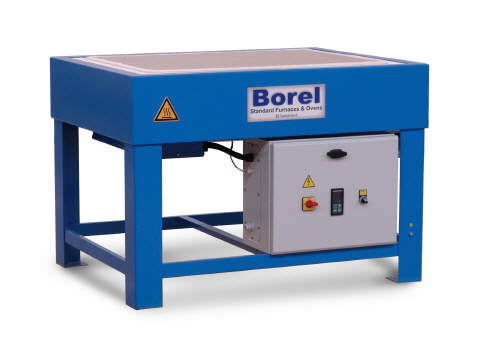

Heating Tables 200 °C

Heating table for all applications

Product Description
Construction: Welded chassis, aluminum tray.
Insulation: Rock wool insulation.
Heating: Heating components distributed throughout the heating surface.
Electricity: Voltage 230 VAC, 50 Hz up to 4 kW and voltage 3x400 VAC frequency 50 Hz from 4 kW.
Regulation: Axron Swiss PID controller.

Options available upon request: Axron Swiss Temperature Programmer, Personal protective equipment, Protective cover, Steel tray, Extended warranty.

Model Item code Plate Dim. (WxH) (mm) Ext. Dim. (WxHxD) (mm) Acceptable mass (kg/m2) Power (kW) Weight (kg)
TC 200-16 P711326 400 x 400 500 x 800 x 500 100 1.0 65
TC 200-26 P711313 650 x 400 750 x 800 x 500 100 1.6 95
TC 200-42 P711321 650 x 650 750 x 800 x 750 100 2.5 150
TC 200-58 P711322 900 x 650 1150 x 800 x 950 100 3.4 200
TC 200-81 P711323 900 x 900 1150 x 800 x 1150 100 4.9 275
TC 200-126 P711324 1400 x 900 1650 x 800 x 1150 100 7.0 420
TC 200-180 P711325 2000 x 900 2250 x 800 x 1150 100 10.9 600

Download product data sheet
