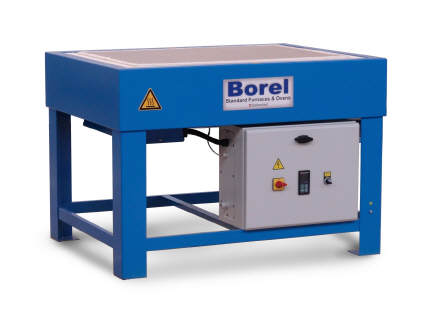

Heating Tables 200 °C
Heating table for all applications
 |
 |
 |
|
||
 |
Product Description
Construction: Welded chassis, aluminum tray.
Insulation: Rock wool insulation.
Heating: Heating components distributed throughout the heating surface.
Electricity: Voltage 230 VAC, 50 Hz up to 4 kW and voltage 3x400 VAC frequency 50 Hz from 4 kW.
Regulation: Axron Swiss PID controller.
Options available upon request: Axron Swiss Temperature Programmer, Personal protective equipment, Protective cover, Steel tray, Extended warranty.
| Model | Item code | Plate Dim. (WxH) (mm) | Ext. Dim. (WxHxD) (mm) | Acceptable mass (kg/m2) | Power (kW) | Weight (kg) |
| TC 200-16 | P711326 | 400 x 400 | 500 x 800 x 500 | 100 | 1.0 | 65 |
| TC 200-26 | P711313 | 650 x 400 | 750 x 800 x 500 | 100 | 1.6 | 95 |
| TC 200-42 | P711321 | 650 x 650 | 750 x 800 x 750 | 100 | 2.5 | 150 |
| TC 200-58 | P711322 | 900 x 650 | 1150 x 800 x 950 | 100 | 3.4 | 200 |
| TC 200-81 | P711323 | 900 x 900 | 1150 x 800 x 1150 | 100 | 4.9 | 275 |
| TC 200-126 | P711324 | 1400 x 900 | 1650 x 800 x 1150 | 100 | 7.0 | 420 |
| TC 200-180 | P711325 | 2000 x 900 | 2250 x 800 x 1150 | 100 | 10.9 | 600 |
Download product data sheet
