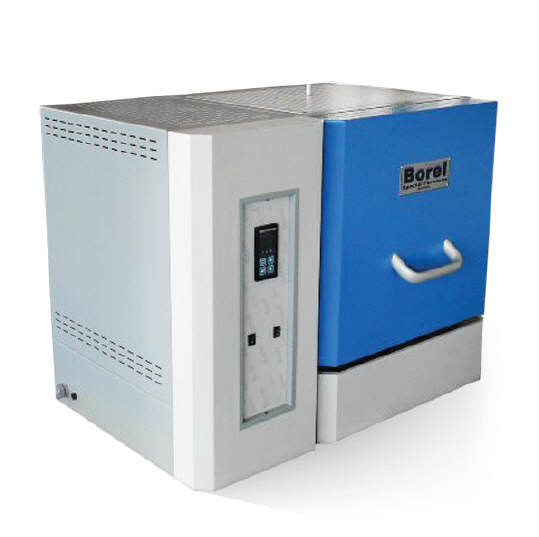

High Temperature Furnaces 1800 °C

Electric chamber furnace for all applications, high temperature

Product Description
Construction: Robust construction made of bent plate. Vertical lifting front door.
Insulation: Multilayer insulation. Interior in ceramic fibre and refractory bricks.
Heating: Heating elements type MoSi2. The heating is turned off at the opening of the door.
Electricity: Single-phase 230 VAC, 50 Hz up to 7 kW and 3x400 VAC, 50 Hz above 7 kW.
Regulation: Axron Swiss PID temperature controller.
Documentation: CE marking and operating instructions in English.

Options available upon request: Axron Swiss Temperature Programmer, Over temperature protection, Additional metal or ceramic sole, Additional set of heating elements, Extended warranty.

Model Item code Int. Vol. (L) Int. Dim. (WxHxD) (mm) Ext. Dim. (WxHxD) (mm) Power (kW) Weight (kg)
MO 1800-2 G15020 2.5 120 x 140 x 150 510 x 770 x 510 3.3 121
MO 1800-4 G15021 3.9 140 x 140 x 200 820 x 660 x 520 4.4 125
MO 1800-8 G15022 8.1 180 x 180 x 250 920 x 700 x 520 7.2 132

Download product data sheet
