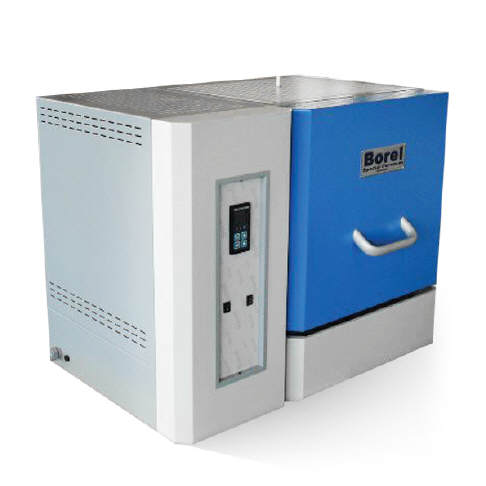

High Temperature Furnaces 1800 °C
Electric chamber furnace for all applications, high temperature
 |
 |
 |
|
||
 |
||
|
||
 |
Product Description
Construction: Robust construction made of bent plate. Vertical lifting front door.
Insulation: Multilayer insulation. Interior in ceramic fibre and refractory bricks.
Heating: Heating elements type MoSi2. The heating is turned off at the opening of the door.
Electricity: Single-phase 230 VAC, 50 Hz up to 7 kW and 3x400 VAC, 50 Hz above 7 kW.
Regulation: Axron Swiss PID temperature controller.
Documentation: CE marking and operating instructions in English.
Options available upon request: Axron Swiss Temperature Programmer, Over temperature protection, Additional metal or ceramic sole, Additional set of heating elements, Extended warranty.
| Model | Item code | Int. Vol. (L) | Int. Dim. (WxHxD) (mm) | Ext. Dim. (WxHxD) (mm) | Power (kW) | Weight (kg) |
| MO 1800-2 | G15020 | 2.5 | 120 x 140 x 150 | 510 x 770 x 510 | 3.3 | 121 |
| MO 1800-4 | G15021 | 3.9 | 140 x 140 x 200 | 820 x 660 x 520 | 4.4 | 125 |
| MO 1800-8 | G15022 | 8.1 | 180 x 180 x 250 | 920 x 700 x 520 | 7.2 | 132 |
Download product data sheet
