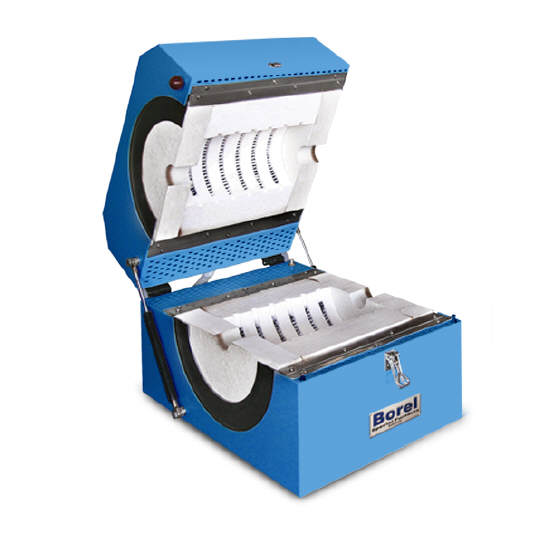

Opening Tube Furnaces 1100 °C

Opening electric tube furnace for all applications

Product Description
Construction: Robust construction made of bent plate.
Insulation: Multilayer insulation. Interior in ceramic fibre and refractory bricks.
Heating: Working chamber surrounded by heating elements.
Electricity: Voltage 230 VAC, 50 Hz up to 4 kW and voltage 3x400 VAC frequency 50 Hz from 4 kW.
Regulation: Axron Swiss PID temperature controller.
Documentation: CE marking and operating instructions in English.

Options available upon request: Axron Swiss Temperature Programmer, Shop table, Circulation of inert gas, Equipment to work under vacuum, Extended warranty.

Model Item code Heated Lenght
(mm)
Tube Dim. (Øxlenght)
(mm)
Ext. Dim. (WxHxD) (mm) Power (kW)
TO 1100-70-250 N16386 250 70 400 x 510 x 500 1.6
TO 1100-70-500 N16387 500 70 650 x 510 x 500 2.4
TO 1100-100-250 N16388 250 100 400 x 510 x 500 2.4
TO 1100-100-500 N16389 500 100 650 x 510 x 500 3.0
TO 1100-130-250 N16390 250 130 400 x 510 x 500 3.0
TO 1100-130-500 N16391 500 130 650 x 510 x 500 3.5
TO 1100-200-400 N16392 250 160 400 x 510 x 500 3.0
TO 1100 250-400 N16394 400 200 555 x 710 x 740 6.0

Download product data sheet
