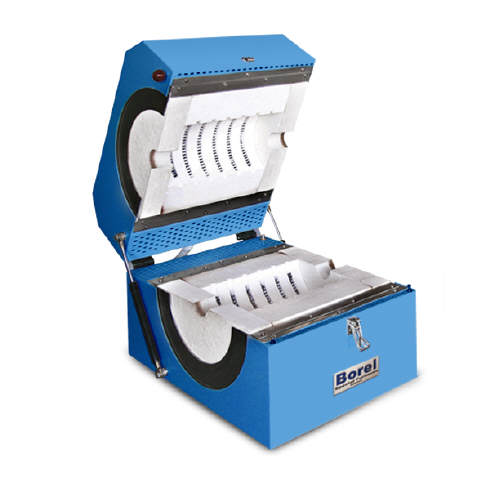

Opening Tube Furnaces 1100 °C
Opening electric tube furnace for all applications
 |
 |
 |
|
||
 |
||
|
||
 |
Product Description
Construction: Robust construction made of bent plate.
Insulation: Multilayer insulation. Interior in ceramic fibre and refractory bricks.
Heating: Working chamber surrounded by heating elements.
Electricity: Voltage 230 VAC, 50 Hz up to 4 kW and voltage 3x400 VAC frequency 50 Hz from 4 kW.
Regulation: Axron Swiss PID temperature controller.
Documentation: CE marking and operating instructions in English.
Options available upon request: Axron Swiss Temperature Programmer, Shop table, Circulation of inert gas, Equipment to work under vacuum, Extended warranty.
| Model | Item code |
Heated Lenght (mm) |
Tube Dim. (Øxlenght) (mm) |
Ext. Dim. (WxHxD) (mm) | Power (kW) |
| TO 1100-70-250 | N16386 | 250 | 70 | 400 x 510 x 500 | 1.6 |
| TO 1100-70-500 | N16387 | 500 | 70 | 650 x 510 x 500 | 2.4 |
| TO 1100-100-250 | N16388 | 250 | 100 | 400 x 510 x 500 | 2.4 |
| TO 1100-100-500 | N16389 | 500 | 100 | 650 x 510 x 500 | 3.0 |
| TO 1100-130-250 | N16390 | 250 | 130 | 400 x 510 x 500 | 3.0 |
| TO 1100-130-500 | N16391 | 500 | 130 | 650 x 510 x 500 | 3.5 |
| TO 1100-200-400 | N16392 | 250 | 160 | 400 x 510 x 500 | 3.0 |
| TO 1100 250-400 | N16394 | 400 | 200 | 555 x 710 x 740 | 6.0 |
Download product data sheet
