Heating Tables 300 °C

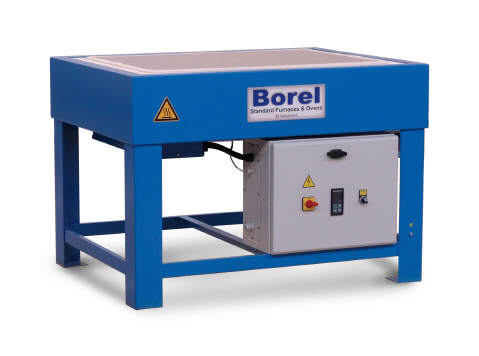

Heating table for all applications

Product Description
Construction: Welded chassis, aluminum tray.
Insulation: Rock wool insulation.
Heating: Heating components distributed throughout the heating surface.
Electricity: Voltage 230 VAC, 50 Hz up to 4 kW and voltage 3x400 VAC frequency 50 Hz from 4 kW.
Regulation: Axron Swiss PID controller.

Options available upon request: Axron Swiss Temperature Programmer, Personal protective equipment, Protective cover, Steel tray, Extended warranty.

Model Item code Plate Dim. (WxH) (mm) Ext. Dim. (WxHxD) (mm) Acceptable mass (kg/m2) Power (kW) Weight (kg)
TC 300-16 P711327 400 x 400 500 x 800 x 500 100 1.9 65
TC 300-26 P711328 650 x 400 750 x 800 x 500 100 3.1 95
TC 300-42 P711329 650 x 650 750 x 800 x 750 100 4.9 150
TC 300-58 P711330 900 x 650 1150 x 800 x 950 100 7.0 200
TC 300-81 P711331 900 x 900 1150 x 800 x 1150 100 9.7 275
TC 300-126 P711332 1400 x 900 1650 x 800 x 1150 100 15.1 420
TC 300-180 P711333 2000 x 900 2250 x 800 x 1150 100 21.7 600

Download product data sheet
