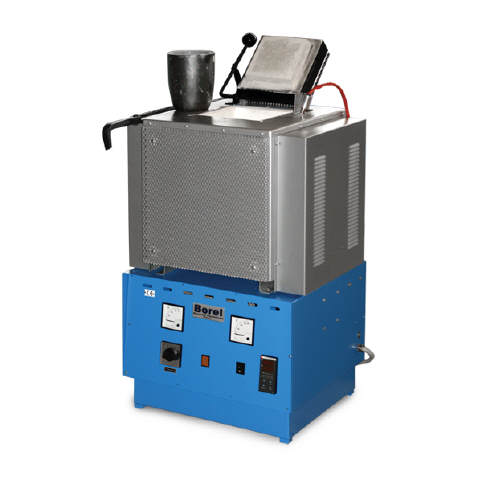

High Temperature Melting Furnaces 1350 °C
Removable crucible furnace for melting or maintaining melted state of non-ferrous metals. Handling of the crucible with tongs.
Product Description
Construction: Access to crucible from top, manual cover closing.
Insulation: Multilayer insulation. Interior in ceramic fibre and refractory bricks.
Heating: Electrical coil resistors on 4-6 sides of the furnace. Resistors mounted on ceramic tubes and/or in grooves. The heating is turned off at the opening of the door.
Electricity: Single-phase 230 VAC, 50 Hz.
Regulation: Digital display PID Axron Swiss temperature controller. Analogue display of voltage and amperes. Selector to compensate ageing of heating elements.
Documentation: CE marking and operating instructions in English.
Delivered with: 1 crucible handling tongs, 1 crucible with pouring lip.

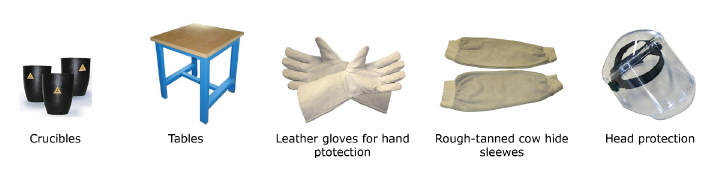

Options available upon request: Aluminised protective gloves, Additional set of heating elements, Additional crucible, Protective apron, Extended warranty.
Model | Item code | Int. Vol. (L) | Acceptable mass (kg) | Crucible Dim. (Ø x h) (mm) | Ext. Dim. (WxHxD) (mm) | Power (kW) | Weight (kg) |
RH 1350-5 | N14825 | 0.75 | 5 | Ø114 x 141 | 500 x 900 x 530 | 4.0 | 85 |
RH 1350-10 | N14826 | 1.2 | 10 | Ø130 x 165 | 500 x 950 x 560 | 5.5 | 98 |
Download product data sheet
