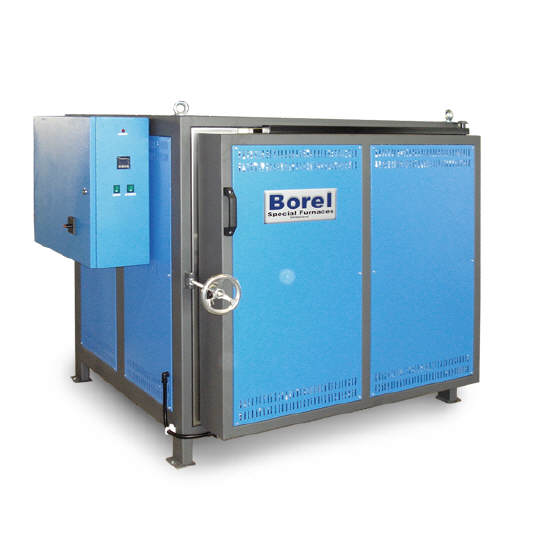

Thermodryer Ovens 400 °C

Forced convection electric oven for all applications

Product description
Construction: Mild or stainless steel for versions -I, several shelves.
Insulation: Rock wool insulation of all surfaces, including door.
Heating: Battery of shielded electrical resistors.
Electricity: 3x400 VAC, 50 Hz.
Regulation: Axron Swiss PID temperature controller, over temperature safety.
Documentation: CE marking and operating instructions in English.
Delivered with: 2 shelves (perforated plates).

Options available upon request: Additional Shelf, Axron Swiss Temperature Programmer, Safety thermostat, Aluminised protective gloves, Extended warranty.

Model Item code Int. Vol. (L) Int. Dim. (WxHxD) (mm) Ext. Dim (WxHxD) (mm) Power (kW) Weight (kg)
TR 400-140 N15973 140 390 x 390 x 900 1140 x 1050 x 1700 8.0 120
TR 400-140-I N15974 140 390 x 390 x 900 1140 x 1050 x 1700 8.0 120
TR 400-180 N15975 180 555 x 605 x 555 1300 x 1150 x 950 6.0 250
TR 400-180-I N15976 180 555 x 605 x 555 1300 x 1150 x 950 6.0 250
TR 400-400 N15977 400 700 x 800 x 700 1360 x 1400 x 1540 20 650
TR 400-400-I N15978 400 700 x 800 x 700 1360 x 1400 x 1540 20 650
TR 400-735 N15979 735 830 x 1490 x 750 1480 x 2400 x 1490 35 1070
TR 400-735-I N15980 735 830 x 1490 x 750 1480 x 2400 x 1490 35 1070

Download product data sheet
