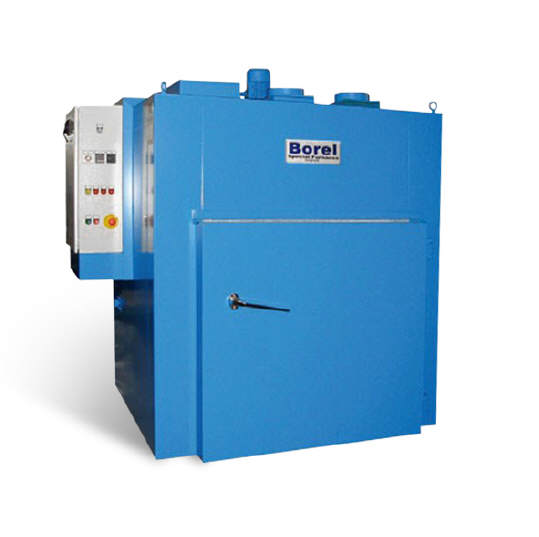

Industrial Ovens 150 °C

Forced convection electric oven for all applications

Product description
Construction: Monobloc type oven. Interior in aluminium and exterior in galvanised plate.
Insulation: Rock wool insulation of all surfaces, including door.
Ventilation: Adjustable horizontal ventilation, and adjustable exhaust.
Heating: Battery of shielded electrical resistors.
Electricity: 3x400 VAC, 50 Hz.
Regulation: Axron Swiss PID temperature controller, timer and hour counter.
Documentation: CE marking and operating instructions in English.

Options available upon request: Bottom: Bottomless, strengthened bottom 1500kg, cuts to measure for trolley. Oven on the feet. Shelf, Swing doors (standard on model 8000 litres), guillotine door. Tunnel oven (front and rear doors), Extended warranty.

Model Item code Int. Vol. (L) Int. Dim. (WxHxD) (mm) Ext. Dim (WxHxD) (mm) Power (kW) Weight (kg)
IA 150-1000 G14781 1000 1000 x 1000 x 1000 1950 x 2100 x 1400 9.0 700
IA 150-1500-H G14782 1500 1000 x 1500 x 1000 1950 x 2650 x 1400 15.0 800
IA 150-1500 G14783 1500 1000 x 1000 x 1500 1950 x 2150 x 1900 15.0 850
IA 150-2000 G14784 2000 1000 x 1500 x 1500 1950 x 2650 x 1900 15.0 1000
IA 150-3000-H G14785 3000 1200 x 1800 x 1500 2200 x 3000 x 1900 24.0 1200
IA 150-3000 G14786 3000 1200 x 1500 x 1800 2200 x 2700 x 2200 24.0 1200
IA 150-3500 G14787 3500 1500 x 1500 x 1500 2500 x 2700 x 1900 24.0 1200
IA 150-4500-H G14788 4500 1500 x 2000 x 1500 2500 x 3200 x 1900 30.0 1300
IA 150-4500 G14789 4500 1500 x 1500 x 2000 2500 x 2700 x 2500 30.0 1400
IA 150-6000 G14790 6000 1500 x 2000 x 2000 2500 x 3200 x 2500 30.0 1500
IA 150-8000 G14791 8000 2000 x 2000 x 2000 3000 x 3200 x 2500 45.0 1800

Download product data sheet
