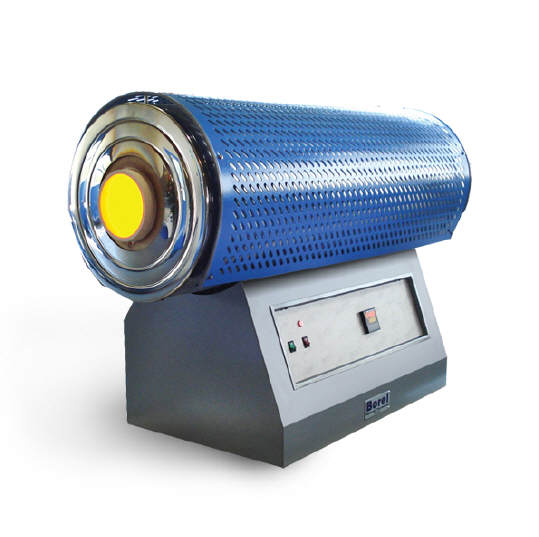

Tube Furnaces 1600 °C

Tubular electric furnace, for all applications

Product Description
Construction: Robust construction made of bent plate.
Insulation: Multilayer insulation. Interior in ceramic fibre and refractory bricks.
Heating: Heating elements in silicon carbide.
Electricity: 3x400 VAC, 50 Hz.
Regulation: Axron Swiss PID temperature controller.
Documentation: CE marking and operating instructions in English.

Options available upon request: Axron Swiss Temperature Programmer, Equipment to work gas, Equipment to work under vacuum, Vertical version, Extended warranty

Model Item code Heated Lenght
(mm)
Tube Dim. (Øxlenght)
(mm)
Ext. Dim. (WxHxD) (mm) Power (kW) Weight (kg)
TU 1600-50-250 N16200 250 50 x 800 665 x 675 x 400 4.0 46
TU 1600-50-450 N16202 450 50 x 900 850 x 745 x 400 5.5 48
TU 1600-75-450 G15046 450 75 x 1000 850 x 745 x 400 6.5 73
TU 1600-50-610 N16204 610 50 x 1300 1150 x 745 x 400 6.0 52
TU 1600-75-610 N17936 610 75 x 1300 1150 x 745 x 400 7.5 85

Download product data sheet
