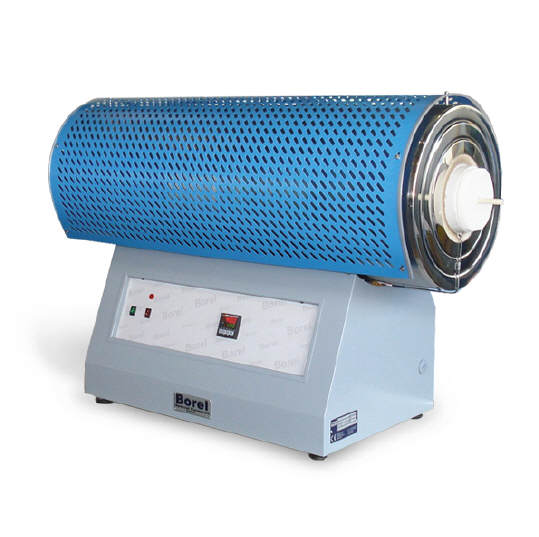

Tube Furnaces 1500 °C

Tubular electric furnace, for all applications

Product Description
Construction: Robust construction made of bent plate.
Insulation: Multilayer insulation. Interior in ceramic fibre and refractory bricks.
Heating: Heating elements in silicon carbide.
Electricity: 3x400 VAC, 50 Hz.
Regulation: Axron Swiss PID temperature controller.
Documentation: CE marking and operating instructions in English.

Options available upon request: Axron Swiss Temperature Programmer, Equipment to work gas, Equipment to work under vacuum, Vertical version, Extended warranty.

Model Item code Heated Lenght
(mm)
Tube Dim. (Øxlenght)
(mm)
Ext. Dim. (WxHxD) (mm) Power (kW) Weight (kg)
TU 1500-50-250 N16191 250 50 x 800 665 x 675 x 400 3.0 46
TU 1500-50-450 N16193 450 50 x 1000 850 x 745 x 400 4.0 48
TU 1500-75-450 N16195 450 75 x 1000 850 x 745 x 400 6.0 73
TU 1500-50-610 N16197 610 50 x 1300 1150 x 745 x 400 5.0 52
TU 1500-75-610 G15044 610 75 x 1300 1150 x 745 x 400 7.0 85

Download product data sheet
