High Temperature Furnaces 1700 °C

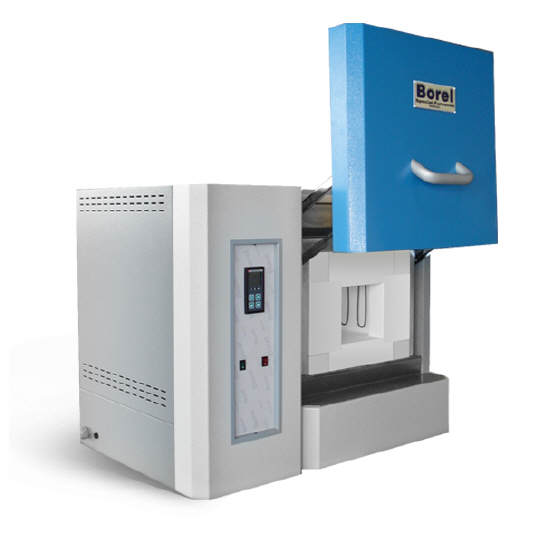

Electric chamber furnace for all applications, high temperature

Product Description
Construction: Robust construction made of bent plate. Vertical lifting front door.
Insulation: Multilayer insulation. Interior in ceramic fibre and refractory bricks.
Heating: Heating elements type MoSi2. The heating is turned off at the opening of the door.
Electricity: Single-phase 230 VAC, 50 Hz up to 7 kW and 3x400 VAC, 50Hz above 7 kW.
Regulation: Axron Swiss PID temperature controller.
Documentation: CE marking and operating instructions in English.

Options available upon request: Axron Swiss Temperature Programmer, Over temperature protection, Additional metal or ceramic sole, Additional set of heating elements, Extended warranty.

Model Item code Int. Vol. (L) Int. Dim. (WxHxD) (mm) Ext. Dim. (WxHxD) (mm) Power (kW) Weight (kg)
MO 1700-2 G15016 2.5 120 x 140 x 150 510 x 770 x 510 3.3 120
MO 1700-4 G15017 3.9 140 x 140 x 200 820 x 660 x 520 4.4 124
MO 1700-8 G15018 8.1 180 x 180 x 250 920 x 700 x 520 7.2 131

Download product data sheet
