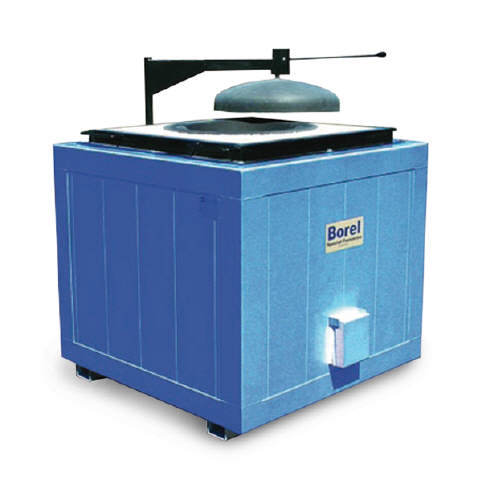

Salt Bath Furnaces 1000 °C
Salt bath furnace for quenching up to 1000°C
 |
 |
 |
|
||
 |
Product Description
Construction: Access to crucible from top, manual cover closing.
Insulation: Multilayer insulation. Interior in ceramic fibre and refractory bricks.
Heating: Electrical coil resistors all around the crucible. Resistors mounted on ceramic tubes.
Electricity: 3x400 VAC, 50 Hz. Independent electric control box to mount on a wall.
Regulation: Thermocouple outside of crucible. Axron Swiss PID temperature controller.
Documentation: CE marking and operating instructions in English.
Delivered with: Delivered without crucible, customised manufacturing.

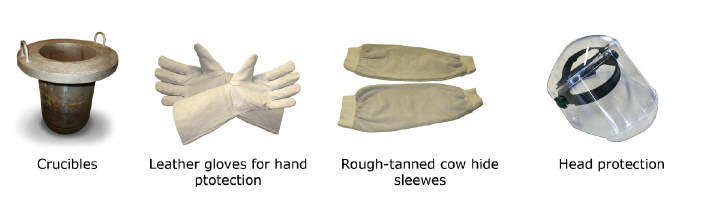

Options available upon request: Axron Swiss Temperature Programmer, Flap on the lid, Additional crucible, Thermocouple inside crucible, Extended warranty.
| Model | Item code | Int. Vol. (L) | Crucible Dim. (Ø x h) (mm) | Ext. Dim. (WxHxD) (mm) | Power (kW) | Weight (kg) |
| SE 1000-20 | G15024 | 19 | Ø250 x 400 | 900 x 800 x 900 | 14 | 490 |
| SE 1000-45 | G15025 | 50 | Ø400 x 400 | 950 x 800 x 950 | 21 | 540 |
| SE 1000-90 | G15026 | 95 | Ø520 x 450 | 1000 x 900 x 1000 | 27 | 590 |
| SE 1000-200 | G15027 | 148 | Ø520 x 700 | 1150 x 1050 x 1150 | 50 | 680 |
| SE 1000-300 | G15028 | 172 | Ø605 x 600 | 1250 x 1150 x 1250 | 60 | 920 |
| SE 1000-350 | G15029 | 201 | Ø605 x 700 | 1400 x 1950 x 1800 | 66 | 1805 |
| SE 1000-500 | G15030 | 366 | Ø720 x 900 | 1600 x 2000 x 1950 | 74 | 2600 |
| SE 1000-600 | G15031 | 407 | Ø720 x 1000 | 1450 x 1400 x 1450 | 84 | 1260 |
Download product data sheet
