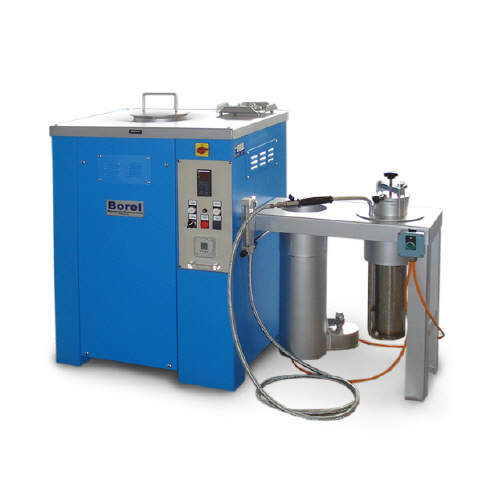

Retort Furnaces with Inert Gas 650 °C

Furnace for working with inert protective gas (nitrogen, argon etc.)

Product Description
Construction: Robust construction made of bent plate.
Insulation: Multilayer insulation. Interior in ceramic fibre and refractory bricks.
Ventilation: Air circulation by a turbine to improve homogeneity within furnace.
Heating: Battery of shielded electrical resistors.
Electricity: 3x400 VAC, 50 Hz.
Regulation: PID Axron Swiss digital temperature controller. Timer.
Documentation: CE marking and operating instructions in English.
Delivered with: Furnace + retort + inert gas equipment + retort support.

Options available upon request: Axron Swiss Temperature Programmer, Thermocouple in retort, Interior baskets for retort,
Forced cooling device of the retort, Extended warranty

Model Item code Int. Vol. (L) Retort Dim. (ØxH) (mm) Int. Dim. (ØxH) (mm) Ext. Dim. (WxHxD) (mm) Power (kW) Weight (kg)
PO 650-S-P2 N14584 2.8 110 x 296 168 x 320 1310 x 950 x 660 3.5 139
PO 650-M-P2 N15032 8.8 185 x 295 250 x 405 1620 x 1093 x 700 6.0 340
