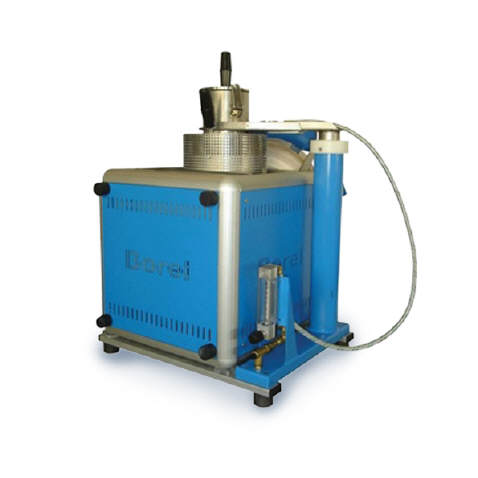

Retort Furnaces with Inert Gas 1050 °C

Furnace for working with inert protective gas (nitrogen, argon etc.)

Product Description
Construction: Semi-automatic jib crane. Flat-bottomed airtight retort.
Insulation: Multilayer insulation. Interior in ceramic fibre and refractory bricks.
Heating: Working chamber surrounded by heating elements.
Type of gas: Working with non-flammable gas (nitrogen, forming gas 95-5 etc.).
Electricity: Single-phase 230 VAC, 50 Hz.
Regulation: PID Axron Swiss digital temperature controller. Timer.
Documentation: CE marking and operating instructions in English.
Delivered with: Furnace + retort + inert gas equipment + retort support.

Options available upon request: Shop table, Forced cooling device of the retort, Interior baskets for retort, Thermocouple in retort, Extended warranty.

Model Item code Int. Vol. (L) Retort Dim. (ØxH) (mm) Int. Dim. (WxHxD) (mm) Ext. Dim. (WxHxD) (mm) Power (kW) Weight (kg)
CP 1050-3-P1 PACKCU1 1.3 Ø108 x 145 Ø150 x 190 900 x 750 x 400 2.0 56
CP 1050-3-P2 PACKCU2 1.3 Ø108 x 145 Ø150 x 190 900 x 750 x 400 2.0 71

Download product data sheet
