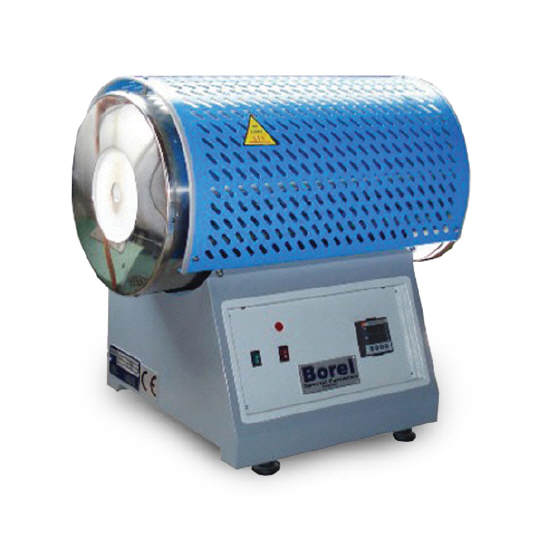

Tube Furnaces 1200 °C

Tubular electric furnace, for all applications

Product Description
Construction: Robust construction made of bent plate.
Insulation: Multilayer insulation. Interior in ceramic fibre and refractory bricks.
Heating: Working chamber surrounded by heating elements.
Electricity: Max. temperature from 1200°C, voltage 1x230 VAC. Max temperature from 1400°C: 2x400 VAC. From 1500 to 1600°C, 3x400 VAC, frequency 50 Hz.
Regulation: Axron Swiss PID temperature controller.
Documentation: CE marking and operating instructions in English.

Options available upon request: Axron Swiss Temperature Programmer, Equipment to work gas, Equipment to work under vacuum, Vertical version, Extended warranty.

Model Item code Heated Lenght
(mm)
Tube Dim. (Øxlenght)
(mm)
Ext. Dim. (WxHxD) (mm) Power (kW) Weight (kg)
TU 1200-20-250 N16148 250 20 x 500 350 x 495 x 345 0.6 14
TU 1200-40-250 N16150 250 40 x 250 450 x 495 x 345 0.8 21
TU 1200-50-250 N16152 250 50 x 450 350 x 495 x 345 1.0 23
TU 1200-20-400 G14527 400 20 x 600 450 x 495 x 345 0.7 18
TU 1200-40-450 N16151 450 40 x 450 500 x 495 x 345 1.0 22
TU 1200-50-450 N16153 450 50 x 650 500 x 495 x 345 1.3 23
TU 1200-75-600 G15038 600 75 x 800 650 x 635 x 400 1.9 32
TU 1200-105-750 N16156 750 105 x 1000 800 x 675 x 400 3.1 36
TU 1200-75-750 N16154 800 75 x 1000 850 x 635 x 400 2.1 37
TU 1200-105-900 G15039 900 105 x 1200 950 x 675 x 400 3.1 41

Download product data sheet
