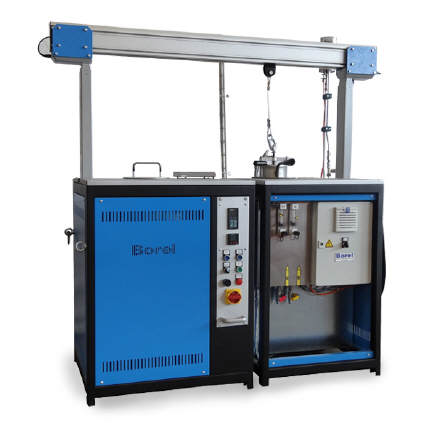

Retort Furnaces with Flammable Gas 650 °C
Furnace for working with flammable gas (hydrogen, cracked ammonia, formiergas etc.)
 |
 |
 |
|
||
 |
Product Description
Construction: Robust construction made of bent plate.
Insulation: Multilayer insulation. Interior in ceramic fibre and refractory bricks.
Ventilation: Air circulation by a turbine to improve homogeneity within furnace.
Heating: Battery of shielded electrical resistors.
Electricity: 3x400 VAC, 50 Hz.
Regulation: PID Axron Swiss digital temperature controller. Timer.
Documentation: CE marking and operating instructions in English.
Delivered with: Furnace + retort with burner + flammable gas equipment + retort support.
Options available upon request: Axron Swiss Temperature Programmer, Thermocouple in retort, Interior baskets for retort, Forced cooling device of the retort, Extended warranty
| Model | Item code | Int. Vol. (L) | Retort Dim. (ØxH) (mm) | Int. Dim. (ØxH) (mm) | Ext. Dim. (WxHxD) (mm) | Power (kW) | Weight (kg) |
| PO 650-S-P3 | N14596 | 2.8 | 110 x 296 | 168 x 320 | 1310 x 950 x 660 | 3.5 | 150 |
| PO 650-M-P3 | N15034 | 8.8 | 185 x 355 | 250 x 405 | 1620 x 1093 x 760 | 6.0 | 352 |
Download product data sheet
