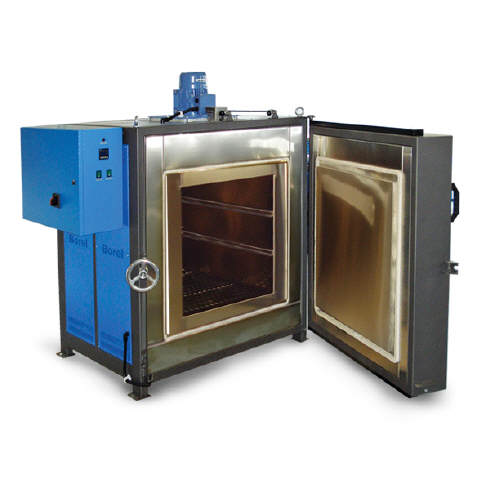

ThermoConvect Furnaces 600 °C
Air circulating furnace for all applications
 |
 |
 |
|
||
 |
||
|
||
 |
Product Description
Construction: Robustly built. Stainless steel interior.
Insulation: Multilayer insulation. Interior in ceramic fibre and refractory bricks.
Ventilation: Fan with stainless steel turbine.
Heating: Battery of shielded electrical resistors.
Electricity: 3x400 VAC, 50 Hz.
Regulation: Axron Swiss PID temperature controller, over temperature safety.
Documentation: CE marking and operating instructions in English.
Delivered with: 2 shelves.
Options available upon request: Axron Swiss Temperature Programmer, Additional Shelf, Time and temperature recorder, Safety thermostat, Extended warranty.
| Model | Item code | Int. Vol. (L) | Int. Dim. (WxHxD) (mm) | Ext. Dim. (WxHxD) (mm) | Power (kW) | Weight (kg) |
| FT 600-30 | N15983 | 30 | 300 x 250 x 450 | 1070 x 1150 x 960 | 6.0 | 250 |
| FT 600-73 | N15984 | 73 | 450 x 250 x 650 | 1150 x 1600 x 1195 | 8.0 | 400 |
| FT 600-180 | N15985 | 180 | 560 x 610 x 560 | 1300 x 1500 x 1110 | 10 | 270 |
| FT 600-290 | N15986 | 290 | 600 x 600 x 800 | 1820 x 2200 x 1990 | 20 | 630 |
| FT 600-300 | N15987 | 300 | 750 x 390 x 850 | 1355 x 1745 x 1400 | 20 | 420 |
| FT 600-970 | N15988 | 970 | 900 x 1200 x 900 | 1730 x 2300 x 1420 | 25 | 900 |
| FT 600-1000 | N15995 | 1000 | 1000 x 1000 x 1000 | 1970 x 2560 x 1600 | 25 | 800 |
| FT 600-1500 | N15996 | 1500 | 1000 x 1000 x 1500 | 1820 x 2240 x 2050 | 30 | 1250 |
| FT 600-2250 | N15999 | 2250 | 1000 x 1500 x 1500 | 1830 x 2750 x 2100 | 45 | 1750 |
Download product data sheet
