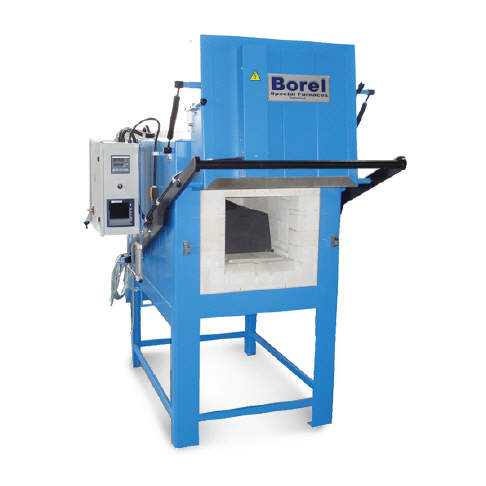

Industrial Furnaces 1250 °C

Electric chamber furnace for all applications

Product Description
Construction: Manually operated vertically-opening door, counterweighted for easy opening, avoids direct contact to the hot surface of the furnace.
Insulation: Multilayer insulation. Interior in ceramic fibre and refractory bricks.
Heating: Electrical coil resistors. Resistors mounted on ceramic tubes and/or in grooves depending on the models. The heating is turned off at the opening of the door.
Electricity: 3x400 VAC, 50 Hz.
Regulation: Axron Swiss temperature controller/programmer, 30 programs of 15 segments with delayed start time setting function.
Documentation: CE marking and operating instructions in English.
Delivered with: Removable ceramic sole

Options available upon request: Additional metal or ceramic sole, Time and temperature recorder, Software for PC control and recording, Circulation of inert gas, Extended warranty.

Model	Item code	Int. Vol. (L)	Int. Dim. (WxHxD) (mm)	Ext. Dim. (WxHxD) (mm)	Power (kW)	Weight (kg)
FI 1250-53	G201867	52.5	350 x 300 x 500	1050 x 1550 x 1600	12	345
FI 1250-63	G201873	63	350 x 300 x 600	1050 x 1550 x 1700	14	370
FI 1250-84	G14944	84	350 x 300 x 800	1050 x 1550 x 1900	21	400
FI 1250-120	G14560	120	500 x 400 x 600	1250 x 1650 x 1850	21	430
FI 1250-140	G14946	140	350 x 400 x 1000	1050 x 1650 x 2100	21	480
FI 1250-160	G14947	160	500 x 400 x 800	1250 x 1650 x 2000	24	530
FI 1250-200	G201817	200	500 x 400 x 1000	1250 x 1650 x 2200	30	570
FI 1250-280	G202050	280	700 x 500 x 800	1450 x 1750 x 2050	33	890
FI 1250-350	G14698	350	700 x 500 x 1000	1450 x 1700 x 2200	33	930
FI 1250-420	G14948	420	700 x 500 x 1200	1450 x 1750 x 2400	37	980
FI 1250-490	G14949	490	700 x 700 x 1000	1450 x 1950 x 2250	40	1050
FI 1250-640	G14868	640	800 x 800 x 1000	1550 x 1950 x 2300	52	1120
